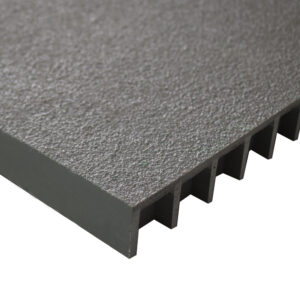

Close up of solid top with a mesh bottom
A grey solid top in tarmac
Grey solid top acting as a trench cover on the ground of Wembley Stadium
A person holding the key which helps place a piece of solid top down
Solid top being used as trench covers at a railway platform going the length of the platform running vertically to the track
Solid top acting as a trench cover next to a railway track
Grey solid top covering a hatch with a cable tray coming vertically upwards with a black wire coming through
Green solid top in a pathway going towards a building surrounded by bricks and stones. The solid top has puddles from rain on them.
QuartzGrip logo

Solid Top Flooring is suitable for a variety of industrial applications and environments. Effectively a standard mesh panel with an anti-slip flooring plate bonded to one side, the solid surface allows smoother movement of wheeled traffic, prevents objects falling through to the level below, and when used as a cover or lid, provides odour retention for storage tanks etc.

Read full description

From £269.42 (exc VAT)

Any questions? Contact us

Description

DeckSafe Quartzgrip Solid Top Flooring is an ideal solution to a variety of industrial applications and environments. It is made by sticking an anti-slip flooring sheet to one side of a sheet of grating. This creates a smooth and solid surface which is perfect for wheeled traffic and preventing objects falling through. It can further be used as a cover or a lid to provide odour retention for storage tanks, etc.

Solid Top Flooring is a lot lighter than concrete. This means lower costs, quicker installation time, lower transport costs and less labour time. Applications this product is suitable for is:

  • Anti-slip flooring
  • Industrial flooring
  • Platform bridges
  • Decking
  • Access Platforms
  • Trench covers

We can supply these as manhole covers or access hatches complete with lifting slots, stainless steel hinges or handles which can be manufactured to suit one or two man material handling limits.
Solid Top Flooring reduces the risks of slips, trips and fall. They are compliant with national and international recognised Health & Safety standards. Installation is quick and simple with strong adhesive or screw fixings.

If your site needs a specialist solution we are happy to develop Bespoke GRP Surfaces with you.

Contact us here for more details.

We also have a Solid Top/Solid Bottom option available. Our Interlocking Panels are perfect if you want a watertight surface.

See our Solid Top in use in our case study Safe at Sea.

Mechanical Data

  • Elastic Modulus 27 GPa
  • Flexural Strength 2.8 GPa
  • Tensile Strength 650 MPa
  • Compressive Strength 90 MPa
  • Dielectric Strength 18 KW/mm
  • Specific Gravity 1.5 ÷ 1.7
  • Thermal Expansion Factor 13 x 10-6 mm/mm °C
  • Water Absorption 0.1% + 0.3% x 24 hours (ISO R62)
  • Operating Temperature -100°C to + 180°C

Physical Data

Grating Depth (mm)

 Grating Pitch (mm) Bar Thickness Per 300mm of Width No. of bars per 300mm % Glass Content Weight (kg/m2)

% Open Area

Top

 Bottom cm2 cm3 cm4

El kg/m2

29

 38.1 6.5 5 23.7 15.1 22 615 8 32 18.5

0

42

 38.1 6.64 5.02 29.8 28.5 60 1857 8 32 25.3

0

54

 50.8 7.9 6.4 20.1 16.8 42.8 6 32 34

0

Manufacturing Tolerances

  • Standard Panel Size = +2mm, -0mm
  • Cut Panel Size = ±3mm
  • Thickness = ±1mm
  •  Mesh Pattern = ±0.5mm
